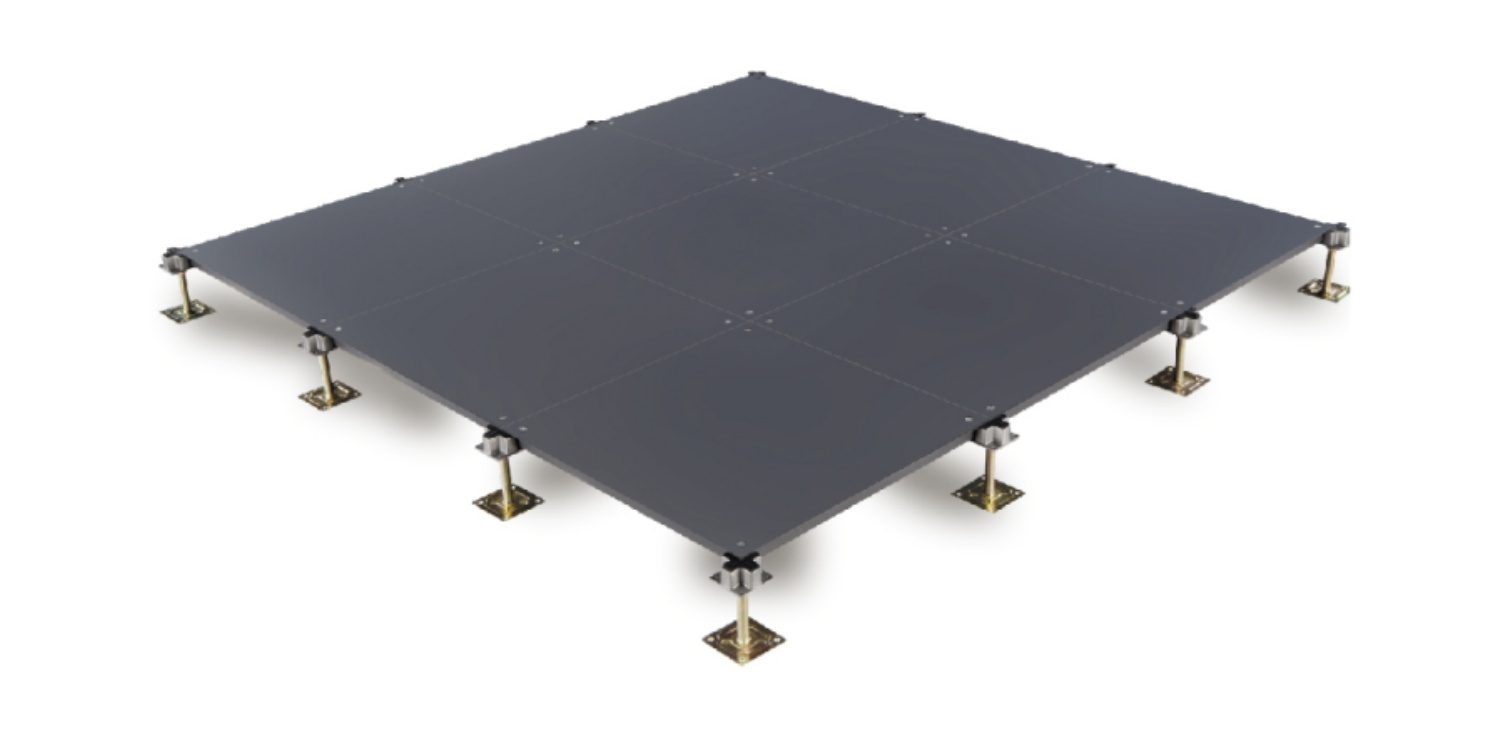

Steel cementitious bare panel

How It Is Built

This panel is made from strong steel sheets on the top and bottom.

The steel parts are shaped and welded together to form a solid structure.

After that, the panel is coated with protective paint to prevent rust.

The inside is filled with lightweight cement, which makes the panel strong but not overly heavy.

Description

Product Details

Weight: Around 12–22 kg per piece
Fire safe: Made from non-combustible materials
High fire rating: Meets international fire resistance standards
Strong performance: Tested to handle heavy loads and impact
Low smoke emission: Designed for safer indoor environments
Asbestos-free: Safe material composition
Green building support: LEED assessment available

Design & Installation Features

The panels are fixed using a screw-down system, which keeps them stable and secure.
The weight placed on the panel is transferred directly to the pedestal support underneath.
Different support structures are available depending on the project requirement.
Designed for easy installation and long-term stability.

Available Sizes

Common size:

600 x 600 mm
610 x 610 mm
(Thickness around 35 mm)

Load Performance (Strength Levels)

There are different strength grades available (such as SC668, SC800, SC1000, SC1250 and higher).
The higher the number, the stronger the panel.

These panels are tested for:

Concentrated load: Heavy weight placed on one small point
Impact load: Sudden force (for example, something dropping on it)
Ultimate load: Maximum weight before failure
Uniform load: Evenly spread weight across the surface
Rolling load: Repeated movement of equipment or trolleys

Certified under international standards (such as CISCA).
